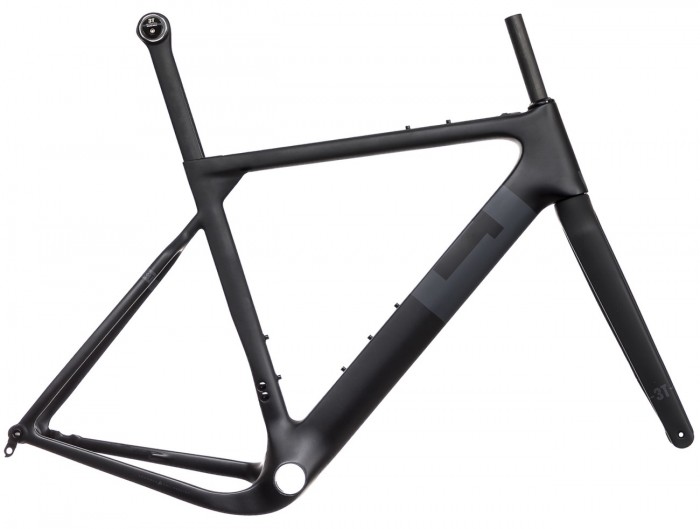

3T Exploro Gets New Aero Fork and Flat Mount Disc Brakes

3T has announced, that its popular Exploro “go anywhere” bike gets a new aero fork and flat-mount disc brakes for 2018.

Widely considered one of the protagonists of the original gravel bike/road plus movement, the Exploro scraps its ost mount brake set-up in favor of Shimano’s pervasive flat mount technology.

In addition, the Exploro also sidelines the Luteus II fork for the company’s latest Fango fork, which features a slimmer crown, more aerodynamic fork blades and fully internal hose routing, along with front and rear Syntace X-12 12mm thru-axles.

The Exploro also receives a new wedge collar seat design, borrowed from its new road bike sibling, the Strada.

According to 3T, the painted version of the disc brake equipped Exploro weighs in at 1,090g (in a size medium), while the matte finish LTD brings the weight down slightly to 990g.

For those who wish to stay with traditional caliper brakes, the original post mount Exploro will still be available.

Pricing has yet to be announced.

more from 3T…

Hey, we’d be skeptical too. Yet a year after the introduction of the original Exploro, customers and press agree that it really is three full-blown bikes in one.

With road wheels and tires, the Exploro is a very fast aero road bike, and comfortable as it fits any size tire. Switch to monster 2.1” (54mm) tires and it soaks up anything that gravel, dirt or singletrack can throw at you. Stay with a mid-size tire to mix on- and off-road segments on every ride.

As the reviews show, the amazing feat of the Exploro is not just that it can do all that, but that it can do it so well.

Why is aerodynamics important on allroad (asphalt, gravel, fire roads, single track) rides?

  • You may go slow off-road, but on the connecting asphalt sections you need road riding speed.
  • If you’re slow because of gradients, aero doesn’t matter much. But if it’s due to head- or crosswinds, you’re slow relative to the ground but very fast relative to the air and that’s what determines the resistance you experience (that’s exactly why you’re slow).

We didn’t want the Exploro to be fast in theory, but in the real world. So we tested at a realistic 20mph (32kmh) instead of the standard 30mph (48kmh) and optimized the frame for water bottles (tough to do long, epic rides without). We even designed the Sqaero shape to work well when covered in mud! The result? A muddy Exploro with 40mm knobby gravel tires and 2 water bottles (red line in the graph) is faster than the equivalent clean round tube bike is with 28mm slick road tires and without bottles (grey line).

The key to the Exploro’s speed is the aero downtube that is wide enough to catch the airflow coming off the big front tire (a skinny downtube wouldn’t even touch the airflow). But at 50mm wide, a full airfoil with a normal ratio would have to be 150-200mm deep, causing too much surface drag. So we square off the tail, keeping most of the aero performance with a 50x75mm cross section that is also close to perfect for strength and stiffness; our Sqaero shape. The wide downtube also effectively shields the water bottles.

We also use Sqaero on the headtube, seattube, seatstays and seatpost.
